VIA support

Browse Source
This commit is contained in:
t-ando 2024-07-03 23:06:20 +09:00
parent 8eeb55a337
commit c96449b48f
5 changed files with 108 additions and 66 deletions
Show Stats Download Patch File Download Diff File Expand all files Collapse all files

99
keyboards/sepsepkbd/yubino_hara/keyboard.json
View File

@ -37,7 +37,7 @@
"usb": {
"device_version": "1.0.0",
"pid": "0x0000",
"vid": "0x7936"
"vid": "0x7A93"
},
"ws2812": {
"driver": "vendor",
@ -50,60 +50,61 @@
"sleep": true
},
"layouts": {
"LAYOUT_split_6x3_4": {
"LAYOUT_split_6x3_3_1": {
"layout": [
{"matrix": [0, 0], "x": 0, "y": 0},
{"matrix": [0, 1], "x": 1, "y": 0},
{"matrix": [0, 2], "x": 2, "y": 0},
{"matrix": [0, 3], "x": 3, "y": 0},
{"matrix": [0, 4], "x": 4, "y": 0},
{"matrix": [0, 5], "x": 5, "y": 0},
{"matrix": [0, 0], "label":"0,0", "x":0, "y":0},
{"matrix": [0, 1], "label":"0,1", "x":1, "y":0},
{"matrix": [0, 2], "label":"0,2", "x":2, "y":0},
{"matrix": [0, 3], "label":"0,3", "x":3, "y":0},
{"matrix": [0, 4], "label":"0,4", "x":4, "y":0},
{"matrix": [0, 5], "label":"0,5", "x":5, "y":0},
{"matrix": [4, 5], "x": 7, "y": 0},
{"matrix": [4, 4], "x": 8, "y": 0},
{"matrix": [4, 3], "x": 9, "y": 0},
{"matrix": [4, 2], "x": 10, "y": 0},
{"matrix": [4, 1], "x": 11, "y": 0},
{"matrix": [4, 0], "x": 12, "y": 0},
{"matrix": [4, 5], "label":"0,8", "x":9.25, "y":0},
{"matrix": [4, 4], "label":"0,9", "x":10.25, "y":0},
{"matrix": [4, 3], "label":"0,10", "x":11.25, "y":0},
{"matrix": [4, 2], "label":"0,11", "x":12.25, "y":0},
{"matrix": [4, 1], "label":"0,12", "x":13.25, "y":0},
{"matrix": [4, 0], "label":"0,13", "x":14.25, "y":0},
{"matrix": [1, 0], "x": 0, "y": 1},
{"matrix": [1, 1], "x": 1.25, "y": 1},
{"matrix": [1, 2], "x": 2.25, "y": 1},
{"matrix": [1, 3], "x": 3.25, "y": 1},
{"matrix": [1, 4], "x": 4.25, "y": 1},
{"matrix": [1, 5], "x": 5.25, "y": 1},
{"matrix": [5, 5], "x": 6.75, "y": 1},
{"matrix": [5, 4], "x": 7.75, "y": 1},
{"matrix": [5, 3], "x": 8.75, "y": 1},
{"matrix": [5, 2], "x": 9.75, "y": 1},
{"matrix": [5, 1], "x": 10.75, "y": 1},
{"matrix": [5, 0], "x": 12, "y": 1},
{"matrix": [2, 0], "x": 0, "y": 2},
{"matrix": [2, 1], "x": 1, "y": 2},
{"matrix": [2, 2], "x": 2, "y": 2},
{"matrix": [2, 3], "x": 3, "y": 2},
{"matrix": [2, 4], "x": 4, "y": 2},
{"matrix": [2, 5], "x": 5, "y": 2},
{"matrix": [2, 6], "x": 6, "y": 1.5, "h": 1.5},
{"matrix": [6, 6], "x": 7, "y": 2},
{"matrix": [6, 5], "x": 8, "y": 2},
{"matrix": [6, 4], "x": 9, "y": 2},
{"matrix": [6, 3], "x": 10, "y": 2},
{"matrix": [6, 2], "x": 11, "y": 2},
{"matrix": [6, 1], "x": 12, "y": 2},
{"matrix": [6, 0], "x": 13, "y": 1.5, "h": 1.5},
{"matrix": [1, 0], "label":"1,0", "x":0, "y":1},
{"matrix": [1, 1], "label":"1,1", "x":1.25, "y":1},
{"matrix": [1, 2], "label":"1,2", "x":2.25, "y":1},
{"matrix": [1, 3], "label":"1,3", "x":3.25, "y":1},
{"matrix": [1, 4], "label":"1,4", "x":4.25, "y":1},
{"matrix": [1, 5], "label":"1,5", "x":5.25, "y":1},
{"matrix": [3, 4], "x": 3, "y": 4},
{"matrix": [3, 5], "x": 4, "y": 4},
{"matrix": [3, 6], "x": 5, "y": 4},
{"matrix": [5, 5], "label":"1,8", "x":9, "y":1},
{"matrix": [5, 4], "label":"1,9", "x":10, "y":1},
{"matrix": [5, 3], "label":"1,10", "x":11, "y":1},
{"matrix": [5, 2], "label":"1,11", "x":12, "y":1},
{"matrix": [5, 1], "label":"1,12", "x":13, "y":1},
{"matrix": [5, 0], "label":"1,13", "x":14.25, "y":1},
{"matrix": [7, 6], "x": 9, "y": 4},
{"matrix": [7, 5], "x": 8, "y": 4},
{"matrix": [7, 4], "x": 7, "y": 4}
{"matrix": [2, 0], "label":"2,0", "x":0, "y":2},
{"matrix": [2, 1], "label":"2,1", "x":1, "y":2},
{"matrix": [2, 2], "label":"2,2", "x":2, "y":2},
{"matrix": [2, 3], "label":"2,3", "x":3, "y":2},
{"matrix": [2, 4], "label":"2,4", "x":4, "y":2},
{"matrix": [2, 5], "label":"2,5", "x":5, "y":2},
{"matrix": [2, 6], "label":"2,6", "x":6.25, "y":1, "h":2},
{"matrix": [6, 6], "label":"2,7", "x":8, "y":1, "h":2},
{"matrix": [6, 5], "label":"2,8", "x":9.25, "y":2},
{"matrix": [6, 4], "label":"2,9", "x":10.25, "y":2},
{"matrix": [6, 3], "label":"2,10", "x":11.25, "y":2},
{"matrix": [6, 2], "label":"2,11", "x":12.25, "y":2},
{"matrix": [6, 1], "label":"2,12", "x":13.25, "y":2},
{"matrix": [6, 0], "label":"2,13", "x":14.25, "y":2},
{"matrix": [3, 4], "label":"3,4", "x":4.25, "y":3.25},
{"matrix": [3, 5], "label":"3,5", "x":5.25, "y":3},
{"matrix": [3, 6], "label":"3,6", "x":6.25, "y":3.25},
{"matrix": [7, 6], "label":"3,7", "x":8, "y":3.25},
{"matrix": [7, 5], "label":"3,8", "x":9, "y":3},
{"matrix": [7, 4], "label":"3,9", "x":10, "y":3.25}
]
}
}

16
keyboards/sepsepkbd/yubino_hara/keymaps/default/keymap.c
View File

@ -4,32 +4,32 @@
#include QMK_KEYBOARD_H
const uint16_t PROGMEM keymaps[][MATRIX_ROWS][MATRIX_COLS] = {
[0] = LAYOUT_split_6x3_4(
[0] = LAYOUT_split_6x3_3_1(
KC_TAB, KC_Q, KC_W, KC_E, KC_R, KC_T, KC_Y, KC_U, KC_I, KC_O, KC_P, KC_BSPC,
KC_LCTL, KC_A, KC_S, KC_D, KC_F, KC_G, KC_H, KC_J, KC_K, KC_L, KC_SCLN, KC_MINS,
KC_LSFT, KC_Z, KC_X, KC_C, KC_V, KC_B, KC_BTN1, KC_BTN2, KC_N, KC_M, KC_COMM, KC_DOT, KC_SLSH, KC_ESC,
KC_LGUI, MO(1), KC_SPC, KC_ENT, MO(2), KC_RALT
),
[1] = LAYOUT_split_6x3_4(
[1] = LAYOUT_split_6x3_3_1(
KC_TAB, KC_EXLM, KC_AT, KC_HASH, KC_DLR, KC_PERC, KC_ASTR, KC_AMPR, KC_LPRN, KC_RPRN, KC_CIRC, KC_BSPC,
KC_LCTL, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, LGUI(KC_SPC), KC_QUOT, KC_EQL, KC_LBRC, KC_RBRC, KC_BSLS, KC_GRV,
KC_LSFT, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, KC_LNG2, RGB_TOG, _______, KC_UNDS, KC_PLUS, KC_LCBR, KC_RCBR, KC_PIPE, KC_TILD,
KC_LSFT, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, KC_LNG2, _______, _______, KC_UNDS, KC_PLUS, KC_LCBR, KC_RCBR, KC_PIPE, KC_TILD,
_______, _______, _______, _______, MO(3), _______
),
[2] = LAYOUT_split_6x3_4(
[2] = LAYOUT_split_6x3_3_1(
KC_TAB, XXXXXXX, KC_7, KC_8, KC_9, XXXXXXX, XXXXXXX, XXXXXXX, KC_UP, XXXXXXX, XXXXXXX, XXXXXXX,
KC_LCTL, XXXXXXX, KC_4, KC_5, KC_6, XXXXXXX, XXXXXXX, KC_LEFT, KC_DOWN, KC_RGHT, XXXXXXX, XXXXXXX,
KC_LSFT, KC_LALT, KC_1, KC_2, KC_3, KC_0, KC_BTN1, _______, KC_LNG1, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX,
KC_LSFT, KC_LALT, KC_1, KC_2, KC_3, KC_0, _______, _______, KC_LNG1, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX,
_______, MO(3), _______, _______, _______, _______
),
[3] = LAYOUT_split_6x3_4(
[3] = LAYOUT_split_6x3_3_1(
KC_F1, KC_F2, KC_F3, KC_F4, KC_F5, KC_F6, KC_F7, KC_F8, KC_F9, KC_F10, KC_F11, KC_F12,
KC_LCTL, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX,
KC_LSFT, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, _______, _______, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX,
KC_LSFT, XXXXXXX, XXXXXXX, RGB_HUI, RGB_SAI, RGB_VAI, RGB_TOG, _______, RGB_VAD, RGB_SAD, RGB_HUD, XXXXXXX, XXXXXXX, XXXXXXX,
_______, _______, _______, _______, _______, _______
),
};
void keyboard_post_init_user(void) {
rgblight_sethsv(0, 0, 100);
rgblight_sethsv(0, 0, 50);
}

35
keyboards/sepsepkbd/yubino_hara/keymaps/via/keymap.c Normal file
View File

@ -0,0 +1,35 @@
// Copyright 2023 QMK
// SPDX-License-Identifier: GPL-2.0-or-later
#include QMK_KEYBOARD_H
const uint16_t PROGMEM keymaps[][MATRIX_ROWS][MATRIX_COLS] = {
[0] = LAYOUT_split_6x3_3_1(
KC_TAB, KC_Q, KC_W, KC_E, KC_R, KC_T, KC_Y, KC_U, KC_I, KC_O, KC_P, KC_BSPC,
KC_LCTL, KC_A, KC_S, KC_D, KC_F, KC_G, KC_H, KC_J, KC_K, KC_L, KC_SCLN, KC_MINS,
KC_LSFT, KC_Z, KC_X, KC_C, KC_V, KC_B, KC_BTN1, KC_BTN2, KC_N, KC_M, KC_COMM, KC_DOT, KC_SLSH, KC_ESC,
KC_LGUI, MO(1), KC_SPC, KC_ENT, MO(2), KC_RALT
),
[1] = LAYOUT_split_6x3_3_1(
KC_TAB, KC_EXLM, KC_AT, KC_HASH, KC_DLR, KC_PERC, KC_ASTR, KC_AMPR, KC_LPRN, KC_RPRN, KC_CIRC, KC_BSPC,
KC_LCTL, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, LGUI(KC_SPC), KC_QUOT, KC_EQL, KC_LBRC, KC_RBRC, KC_BSLS, KC_GRV,
KC_LSFT, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, KC_LNG2, RGB_TOG, _______, KC_UNDS, KC_PLUS, KC_LCBR, KC_RCBR, KC_PIPE, KC_TILD,
_______, _______, _______, _______, MO(3), _______
),
[2] = LAYOUT_split_6x3_3_1(
KC_TAB, XXXXXXX, KC_7, KC_8, KC_9, XXXXXXX, XXXXXXX, XXXXXXX, KC_UP, XXXXXXX, XXXXXXX, XXXXXXX,
KC_LCTL, XXXXXXX, KC_4, KC_5, KC_6, XXXXXXX, XXXXXXX, KC_LEFT, KC_DOWN, KC_RGHT, XXXXXXX, XXXXXXX,
KC_LSFT, KC_LALT, KC_1, KC_2, KC_3, KC_0, KC_BTN1, _______, KC_LNG1, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX,
_______, MO(3), _______, _______, _______, _______
),
[3] = LAYOUT_split_6x3_3_1(
KC_F1, KC_F2, KC_F3, KC_F4, KC_F5, KC_F6, KC_F7, KC_F8, KC_F9, KC_F10, KC_F11, KC_F12,
KC_LCTL, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX,
KC_LSFT, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, _______, _______, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX, XXXXXXX,
_______, _______, _______, _______, _______, _______
),
};
void keyboard_post_init_user(void) {
rgblight_sethsv(0, 0, 100);
}

23
keyboards/sepsepkbd/yubino_hara/readme.md
View File

@ -1,20 +1,26 @@
# yubino_hara
![yubino_hara](imgur.com image replace me!)

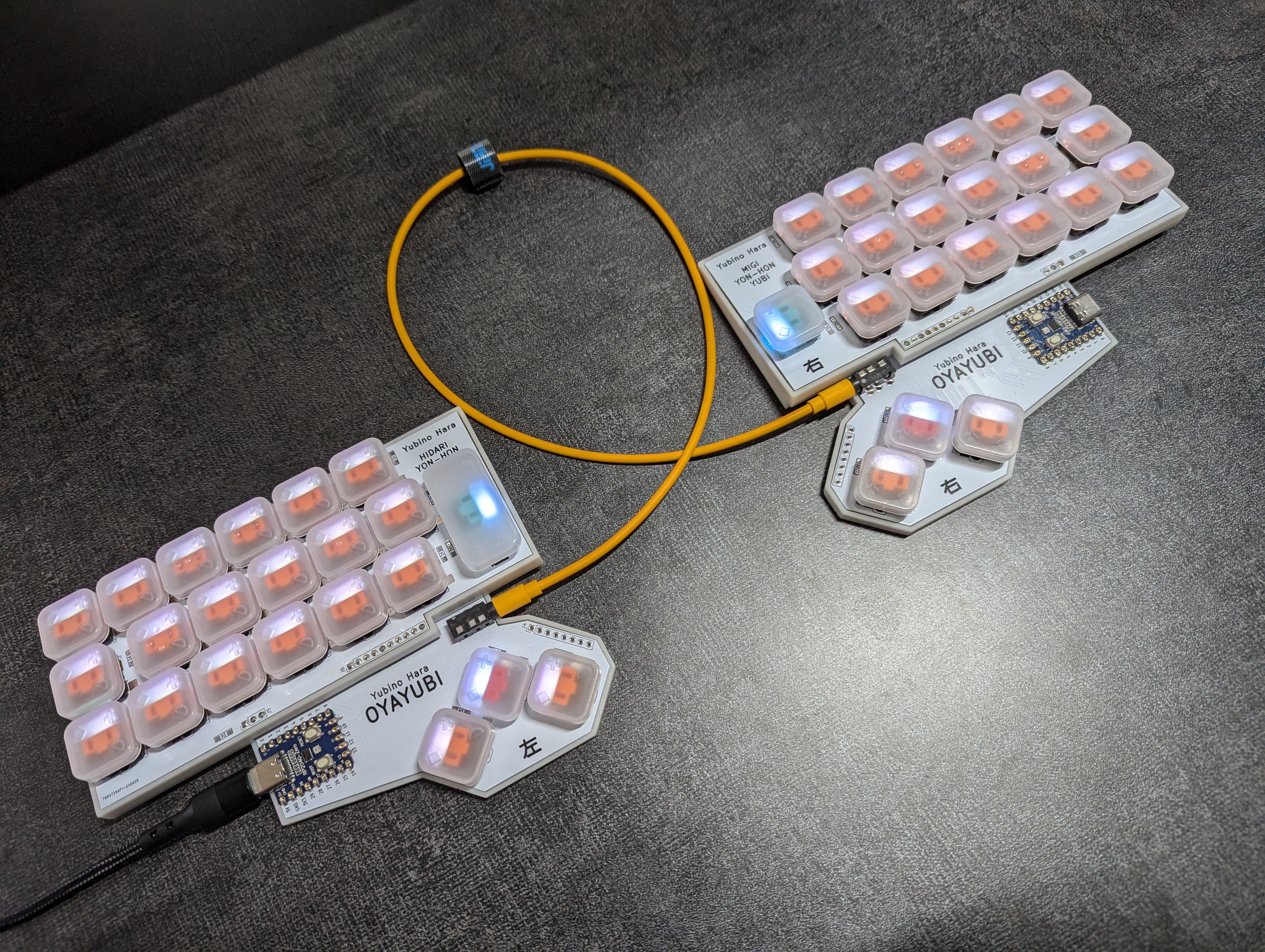

![yubino_hara](https://raw.githubusercontent.com/nagmeal/sep-sep-kbd/main/yubino-hara/yubinohara.jpg)
- Split
- Reverse tilt (tilted from front to back)
- Symmetrical staggered
*A short description of the keyboard/project*
* Keyboard Maintainer: [t-ando](https://github.com/nagmeal)
* Hardware Supported: *The PCBs, controllers supported*
* Hardware Availability: *Links to where you can find this hardware*
* Hardware Supported: *YUBINO-HARA PCB, RP2040-zero*
* Hardware Availability: *[PCB & Case Data](https://github.com/nagmeal/sep-sep-kbd/tree/main/yubino-hara)*
Make example for this keyboard (after setting up your build environment):
make yubino_hara:default
qmk compile -kb sepsepkbd/yubino_hara -km default
Flashing example for this keyboard:
make yubino_hara:default:flash
Connect to PC with USB cable and copy the generated fa2 file.
See the [build environment setup](https://docs.qmk.fm/#/getting_started_build_tools) and the [make instructions](https://docs.qmk.fm/#/getting_started_make_guide) for more information. Brand new to QMK? Start with our [Complete Newbs Guide](https://docs.qmk.fm/#/newbs).
@ -22,6 +28,5 @@ See the [build environment setup](https://docs.qmk.fm/#/getting_started_build_to
Enter the bootloader in 3 ways:
* **Bootmagic reset**: Hold down the key at (0,0) in the matrix (usually the top left key or Escape) and plug in the keyboard
* **Physical reset button**: Briefly press the button on the back of the PCB - some may have pads you must short instead
* **Keycode in layout**: Press the key mapped to `QK_BOOT` if it is available
* **Bootmagic reset**: Connect to PC while holding down the "BOOT" button on the RP2040-zero.
* **Physical reset button**: Press the "RESET" button on RP2040-zero.

1
keyboards/sepsepkbd/yubino_hara/rules.mk
View File

@ -1 +1,2 @@
SERIAL_DRIVER = vendor
VIA_ENABLE = yes
